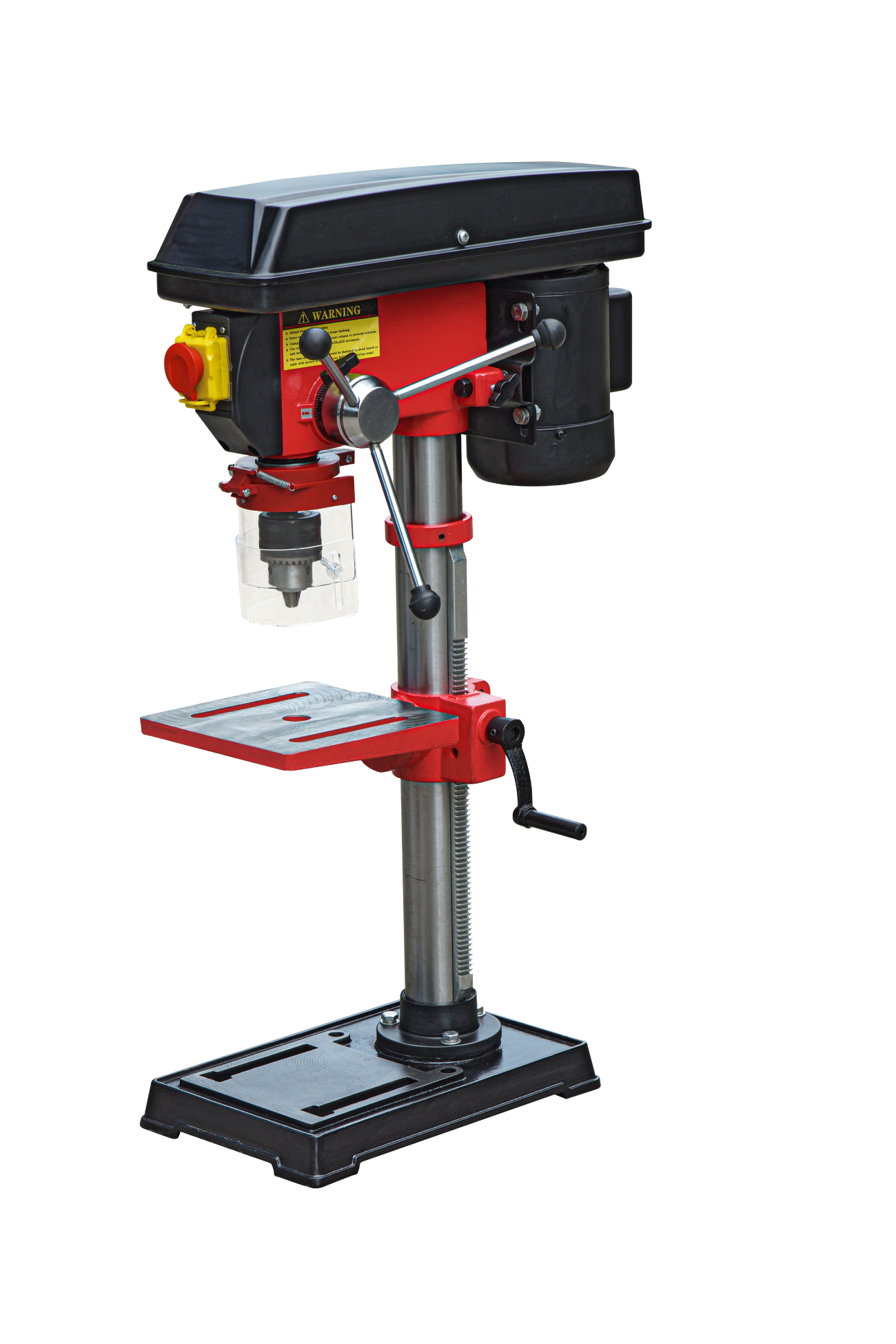

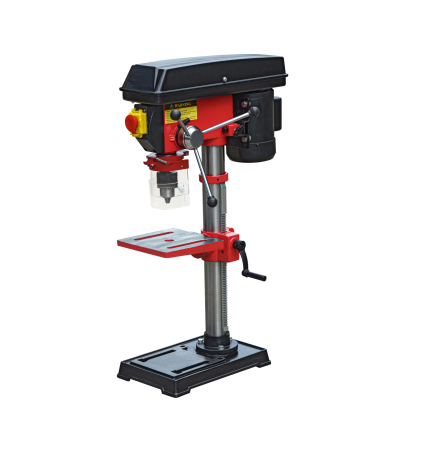

Bench Drill

Raider RDP-BD05

Art. № 011105

- Powerful electric motor
- Reinforced chuck

  • Τροφοδοσία
  • Εξουσία
  • Μέγιστες περιστροφές
  • Τροφοδοσία
  • Γρανάζια
  • Ρυθμιζόμενη ταχύτητα
  • Τροφοδοσία
  • Εξουσία
  • Μέγιστες περιστροφές
  • Τροφοδοσία
  • Γρανάζια
  • Ρυθμιζόμενη ταχύτητα

Description

  • Stable construction
  • Protective spindle cover
  • Rotary handle for drilling



Technical specifications



Rated Voltage / Frequency, V / Hz: 230 / 50
Rated Power Output, W: 650
RPM, min-1: 220 - 2450
Number Of Mechanical Gears: 12х
Single Sleeve Chuck Capacity, mm: 1.5 - 16
Spindle Taper: B16
Spindle Travel, mm: 60
Height, mm: 820
Support Surface Size, mm: 200 х 200
Base Size, mm: 355 x 235
Column ⌀, mm: 60
Spindle Axis To Column Surface Distance, mm: 126
Spindle End To Table Surface Distance, mm: 400
Spindle Axis To Base Surface Distance, mm: 515
Protection Class: I
Sound Pressure Level LpA Uncertainty K=3, dB (A): 66
Sound Power Level LwA Uncertainty K=3, dB (A): 79
Gross Weight, kg: 31.000
Net Weight, kg: 27.900
Dimensions, mm: 440 x 690 x 210 mm




Equipment



drill: RDP-BD05
Wrench: 1x
