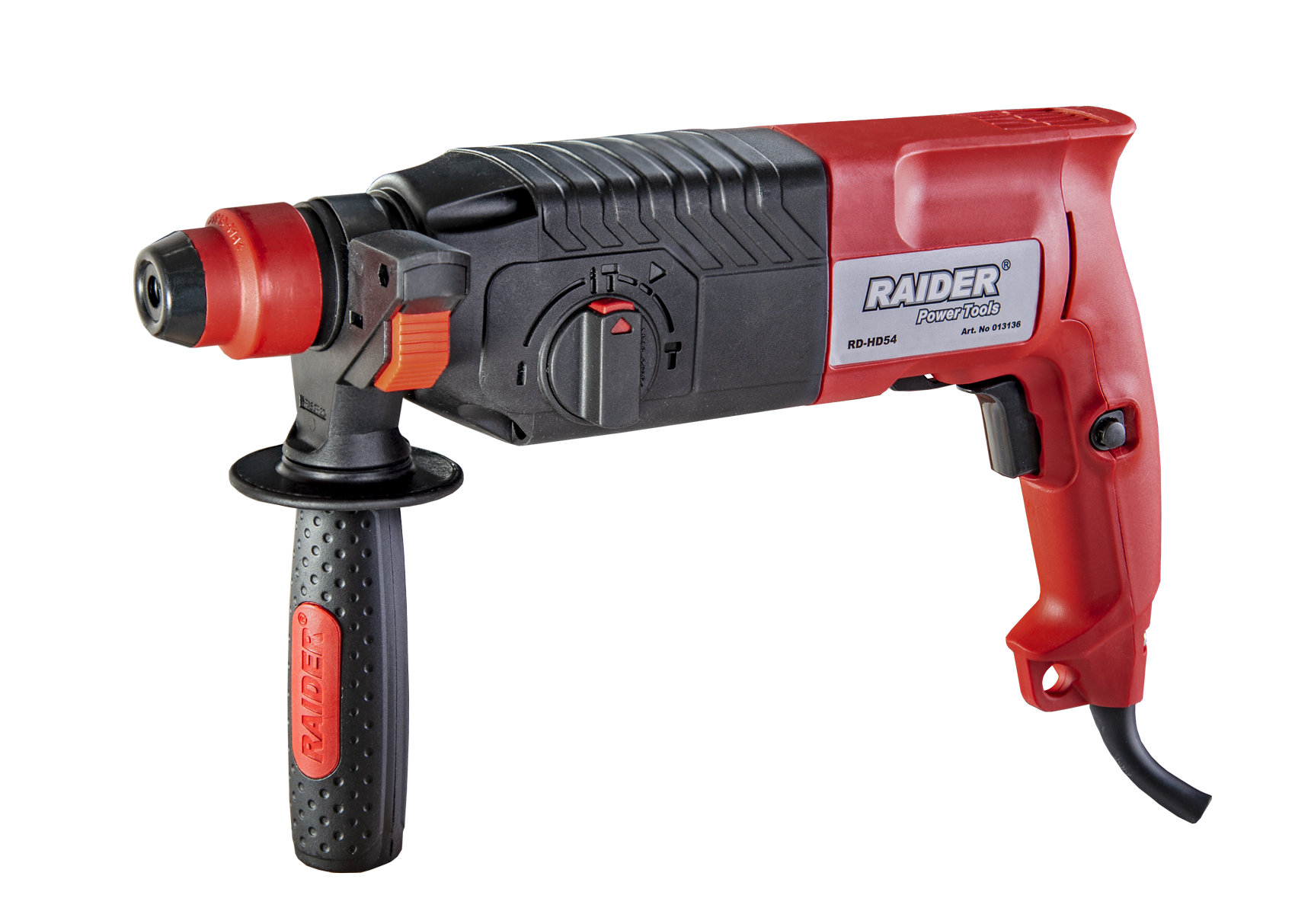

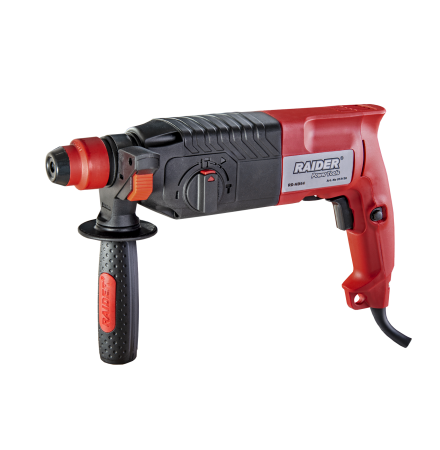

Rotary Hammer

Raider RD-HD54

Art. № 013136
Rotary Hammer RD-HD54 Download Image
  • Τροφοδοσία
  • Εξουσία
  • λειτουργία των επιπτώσεων
  • Μέγιστη διάμετρος τρυπήματος σε μέταλλο
  • Μέγιστη διάμετρος τρυπήματος σε μπετόν
  • Ρυθμιζόμενη ταχύτητα
  • Μέγιστη διάμετρος τρυπήματος σε ξύλο
  • τσοκ SDS+
  • Τροφοδοσία
  • Εξουσία
  • λειτουργία των επιπτώσεων
  • Μέγιστη διάμετρος τρυπήματος σε μέταλλο
  • Μέγιστη διάμετρος τρυπήματος σε μπετόν
  • Ρυθμιζόμενη ταχύτητα
  • Μέγιστη διάμετρος τρυπήματος σε ξύλο
  • τσοκ SDS+

Description

  • Current V AC / Frequency Hz: 230 / 50
  • Rated power input W: 750
  • No-load Speed min-1: 0 - 1000
  • Hammer frequency at rated speed min-1: 4850
  • Hammer energy per stroke J: 2.2
  • Max. permissible drilling diameter in steel mm: 13
  • Max. permissible drilling diameter in wood mm: 30
  • Max. permissible drilling diameter in concrete mm: 26
  • Max. permissible drilling diameter with a bit core mm: 90.3(A), K = 3 dB
  • Sound pressure level LpA dB: 101.3(A), K = 3 dB
  • Sound power level LwA dB: 17.422, K = 3.7
  • Vibration emission value of main handle chiseling into concrete ah m/s2: 19.079, K = 1.5
  • Vibration emission value of main handle hammer drilling into concrete ah m/s2: 10.108, K = 3.7
  • Vibration emission value of the auxiliary handle chiseling into concrete ah m/s2: 13.483 K = 1.5
  • Vibration emission value of the auxiliary handle hammer drilling into concrete ah m/s2: 12.1, K = 1.5
  • Protection class: II



Technical specifications



Voltage, V: 230
Frequency, Hz: 50
Rated Power Output, W: 750
No- Load Speed, min-1: 0 - 1000
Maximum Impact Frequency, min-1: 4850
Maximum Impact Energy, J: 2.2
Maximum Drilling Capacity In Steel, mm: 13
Maximum Drilling Capacity In Wood, mm: 30
Maximum Drilling Capacity In Concrete, mm: 26
Maximum Hole Saw Drilling Capacity, mm: 90.3 (A) , K = 3dB
Sound Pressure Level L, dB: 101.3 (A) , K = 3 dB
Sound Power Level L, dB: 17.422, K = 3.7
Vibrational Level Of The Main Handle In Concrete, m/s2: 19.079, K = 1.5
Vibrational Level Of The Main Handle In Concrete, m/s2: 10.108, K = 3.7
Vibrational Level Of The Auxiliary Handle In Concrete, m/s2: 13.483 K = 1.5
Vibrational Level Of The Auxiliary Handle In Concrete, m/s2: 12.1, K = 1.5
Isolation Protection Class: II
Gross Weight, kg: 4.700
Net Weight, kg: 2.800
