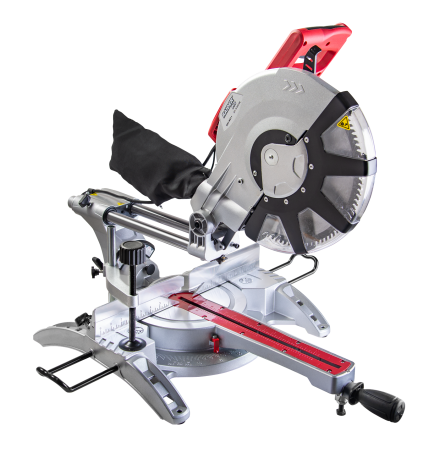

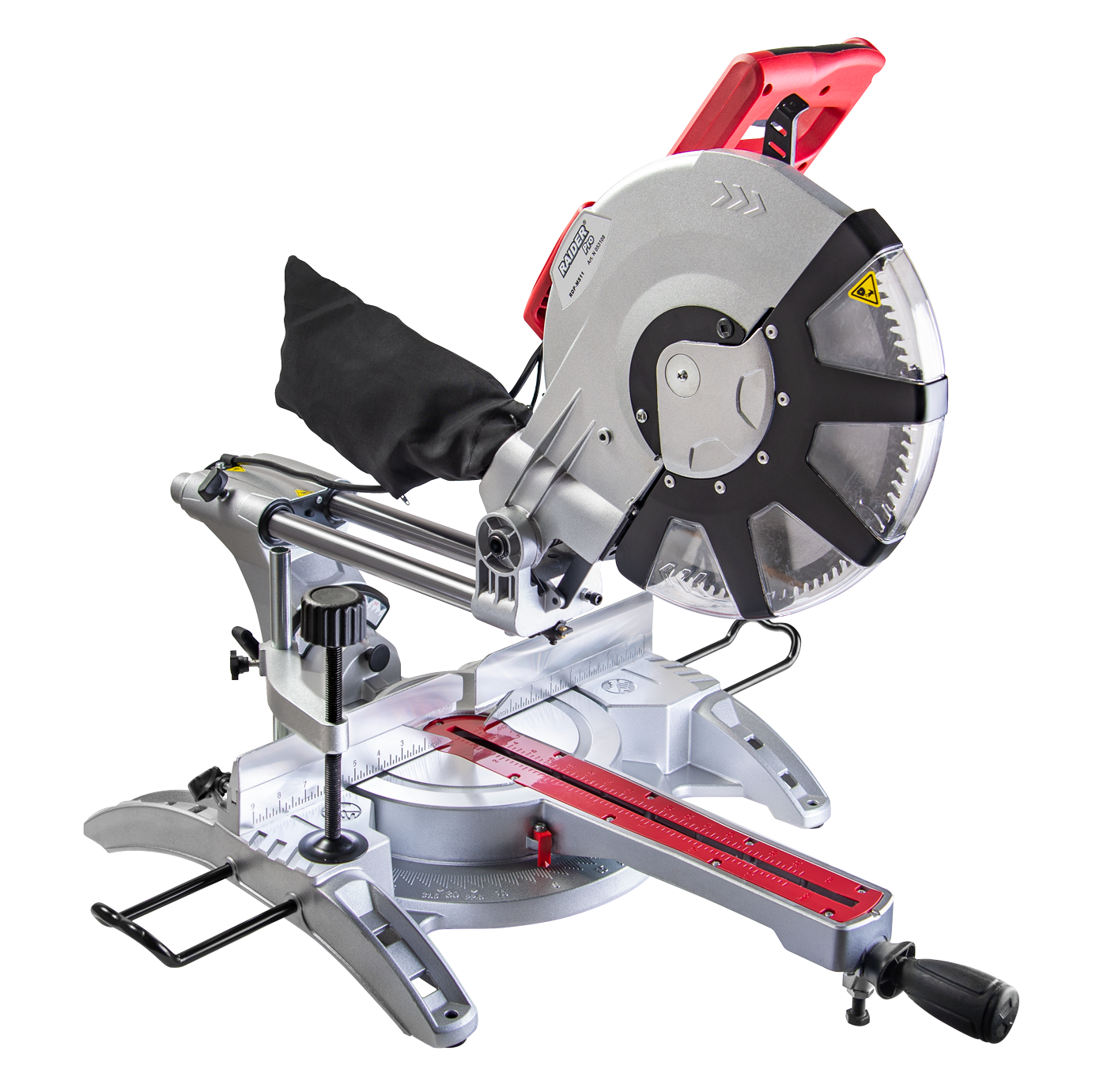

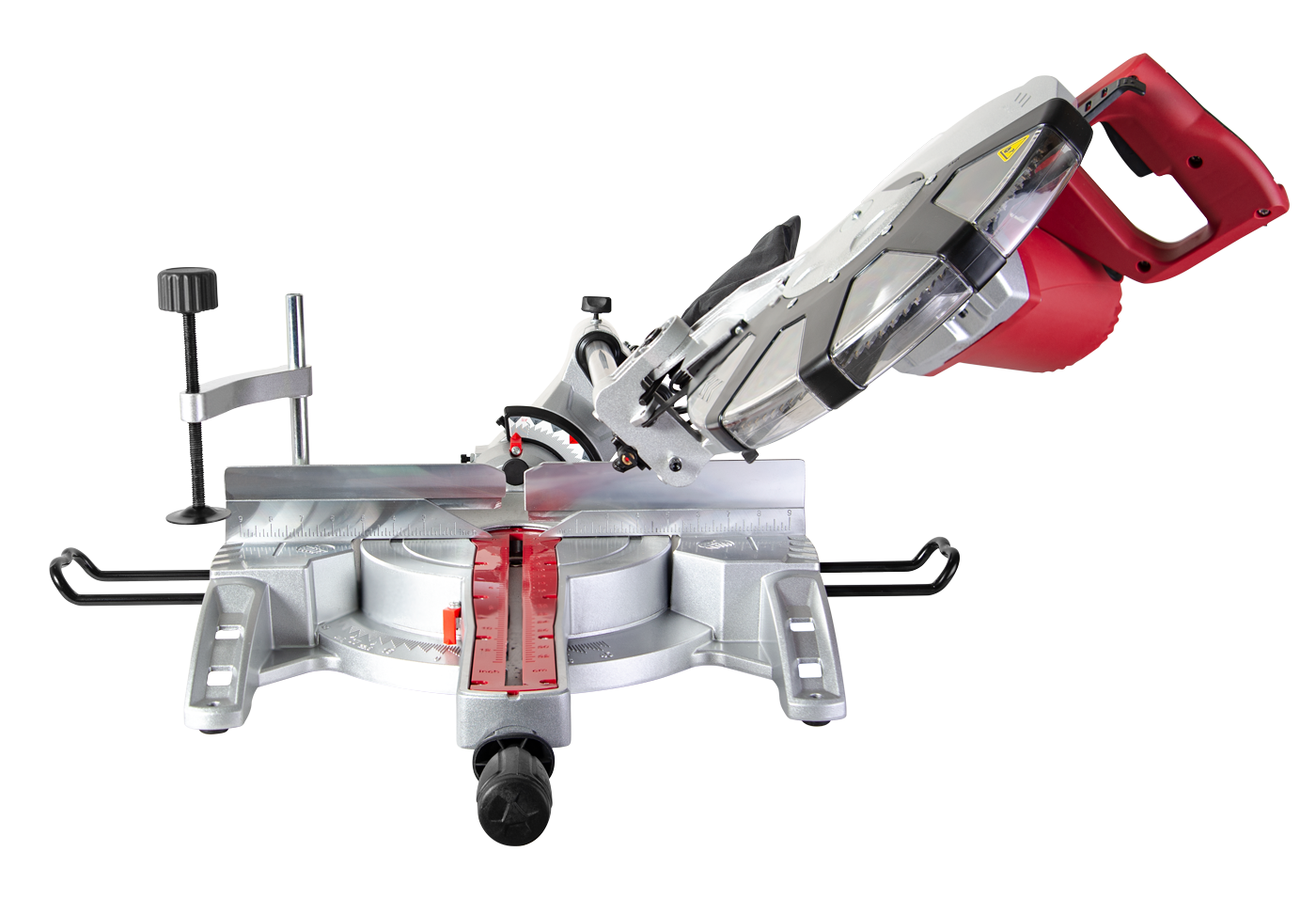

Dual Bevel Sliding Compound Laser Miter Saw

Raider RDP-MS11

Art. № 053108

• Double bevel sliding compound
• Dust capturing
• Soft start

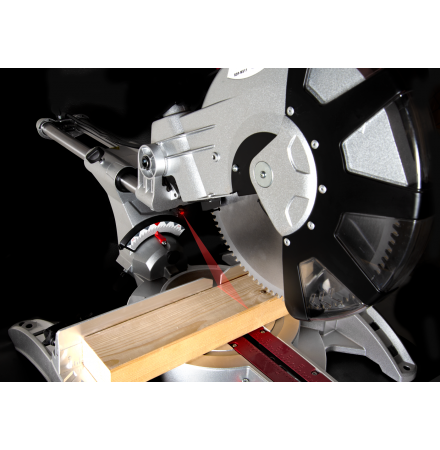

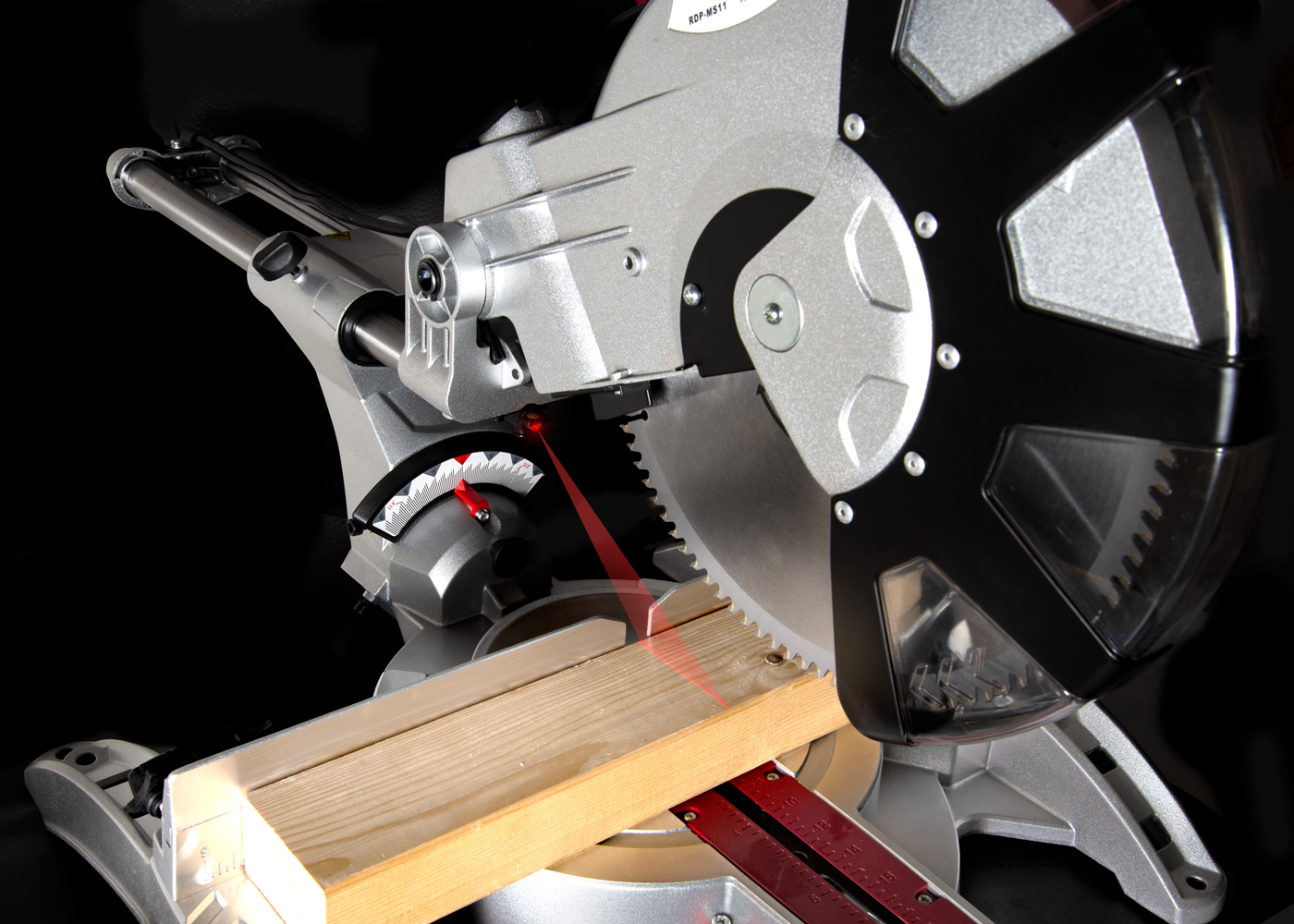

• Infrared beam laser

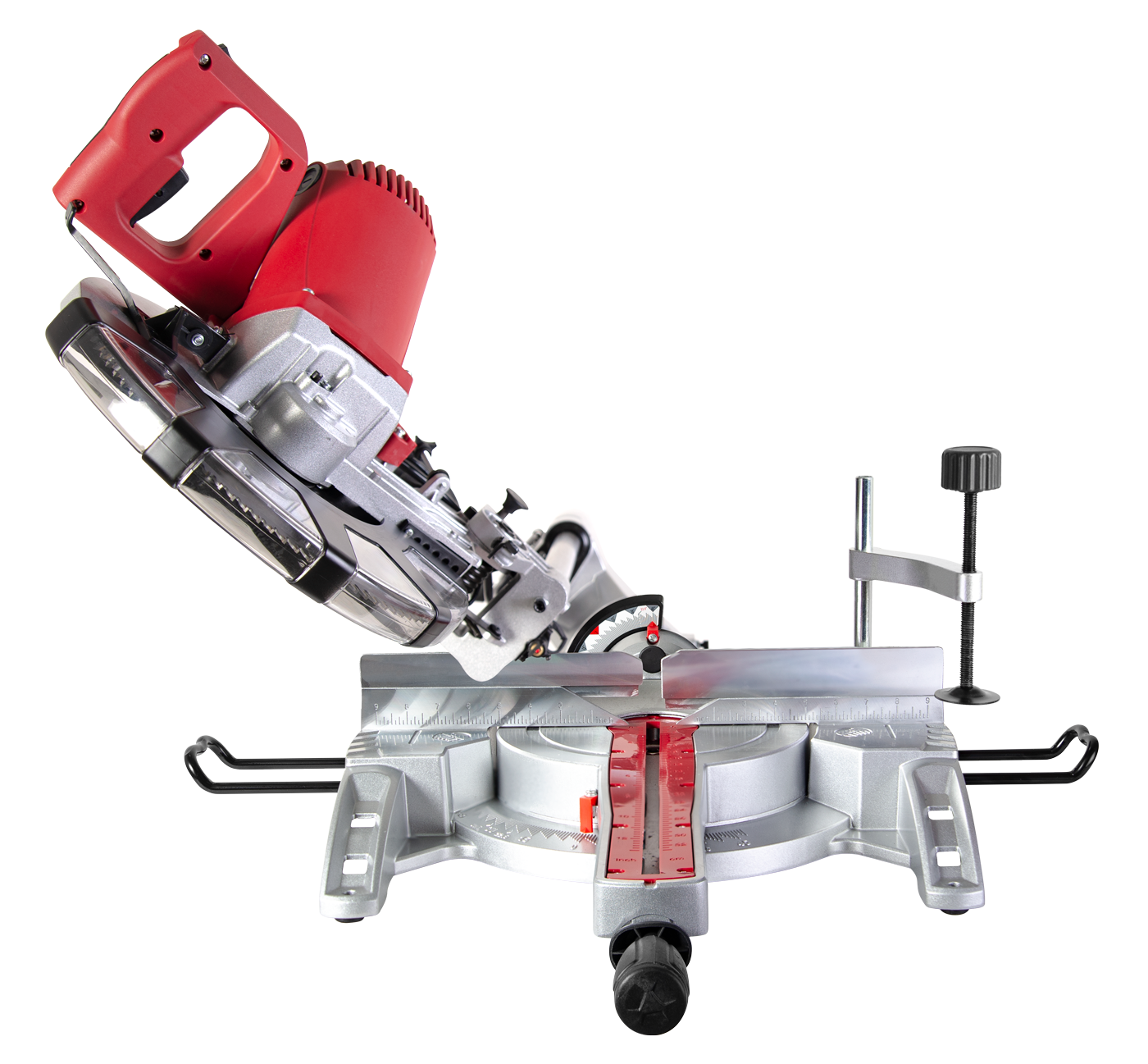

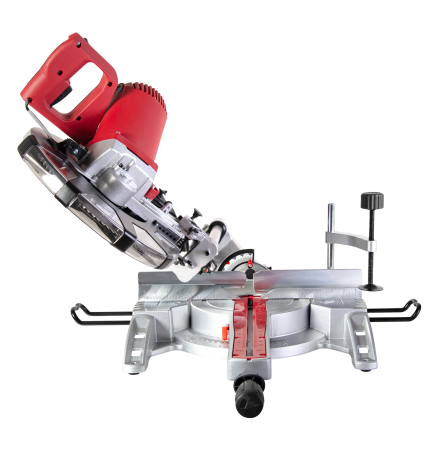

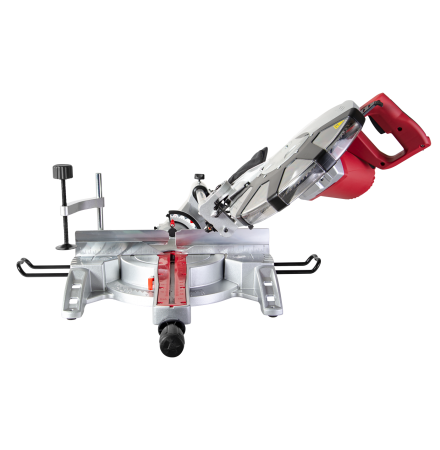

• Special design of the gearbox, which allows tilting of the saw blade below 45 ° to the left & right

  • Τροφοδοσία
  • Μέγιστες περιστροφές
  • Βάθος κοπής σε ξύλο
  • Κοπή ρύθμιση γωνίας
  • Η συσκευή είναι εξοπλισμένη με δείκτη λέιζερ
  • Αναρρόφηση σκόνης
  • Τροφοδοσία
  • Μέγιστες περιστροφές
  • Βάθος κοπής σε ξύλο
  • Κοπή ρύθμιση γωνίας
  • Η συσκευή είναι εξοπλισμένη με δείκτη λέιζερ
  • Αναρρόφηση σκόνης

Description

  • Rated voltage / Frequency: 230 V ~ 50 Hz
  • Power: 2100 W
  • No-load speed: min-1 4500
  • Blade diameter mm 305x30x3 mm 100 T
  • Max cutting capacity
  • 100x330 mm (00x 900)
  • 60x330 mm (450x 900)
  • 100x220 mm (00x 450)
  • 60x220 mm (450x 450)
  • Protection class - II



Technical specifications



Rated Voltage, V: 230
Frequency, Hz: 50
Rated Power Output, W: 2100
No- Load Speed, min-1: 4500
Disc Diameter, mm: 305
Bore Diameter, mm: 30
Disc Thickness, mm: 3
Maximum Cutting Capacity @ 0° x 90° , mm: 100 x 330
Maximum Cutting Capacity @ 45° x 90° , mm: 60 x 330
Maximum Cutting Capacity @ 0° x 45° , mm: 100 x 220
Maximum Cutting Capacity @ -45° x 45° , mm: 60 x 220
Sound Pressure Level LpA, dB (A): 91.9+3
Sound Power Level Lwa, dB (A): 104.9+3
Vibration Acceleration Value (Ah) K = 1.5, m/s2: <2.5
Isolation Protection Class: II
Number Of Teeth: 100
Gross Weight, kg: 20.000
Net Weight, kg: 16.000
Net Size: 800 x 475 x 287.5 mm




Equipment



Saw: 1
Saw Disc: 1
Dust Collector Bag: 1
